ESP-KVM is free, open-source firmware that turns the Waveshare ESP32-P4-WIFI6-DB into an IP-KVM: the screen, keyboard and mouse of another computer in your browser, from the BIOS up. Add an HDMI capture board, flash it from the browser, and it runs with no Linux, no app and no cloud. What it does → Try the demo →

Waveshare ESP32-P4-WIFI6-DB
The Wi-Fi-only device with a 5 GHz radio

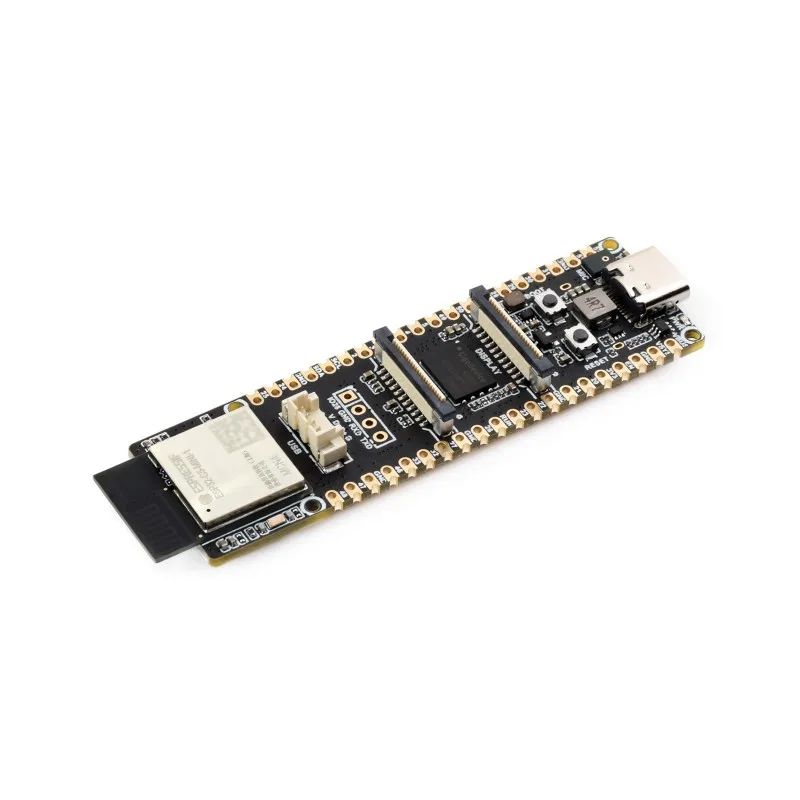

Waveshare ESP32-P4-WIFI6-DB

The ESP32-P4-WIFI6 with a dual-band ESP32-C5 and a rev 3.x chip. Wi-Fi only.

StatusRun on hardware
FamilyAll Waveshare parts
Fit for a KVM 3 of 5 6 of 10 points
  • ✓tested on hardware+3
  • ✓rev 3.x chip (faster H.264)+1.5
  • ✗Ethernet0 of 1.5
  • ✓Wi-Fi+0.5
  • ✗PoE0 of 1
  • ✓microSD+0.5
  • ✗plain USB cable to the target0 of 1
  • ✗capture ribbon fits as is0 of 0.5
  • ✓small board (15 cm²)+0.5
ChipESP32-P4NRW32X, rev 3.x
Memory32 MB PSRAM, 32 MB flash
Size70 x 21 mm, 76 mm with the PCB antenna
Antennatwo versions, a PCB antenna on the board or an external FPC one on a cable; tested with the FPC one
Networkdual-band Wi-Fi 6 (ESP32-C5) only
To the targetUSB OTG on a 4-pin header
Capture connector22-pin 0.5 mm camera connector (Pi 5 kind)
microSDyes

Install from the browser Waveshare product page Waveshare docs Compare

The ESP32-P4-WIFI6 with an ESP32-C5 in place of the C6. Waveshare's pin table matches the WIFI6 apart from the co-processor, so the image is the WIFI6's with the C5 and the chip revision changed.

Wiring

  • USB OTG is on a 4-pin header, like on the WIFI6, so the target needs a cable from that header to USB-A.
  • The Type-C is power, flashing and the log, through a CH343P.
  • The camera connector is the 22-pin 0.5 mm kind, not the WIFI6's 15-pin. The C790 and C792 have a 22-pin connector on the back and the cable for it in the box.

It has no Ethernet: Wi-Fi is the only way in, and the first boot opens the setup hotspot. Tested on one: flashed from the browser, Wi-Fi through the C5, a 1080p30 picture from a C792, keyboard and mouse on the target. Mine is the version with the external FPC antenna.
