ESP-KVM is free, open-source firmware that turns the Espressif ESP32-P4X-C5-Function-EV-Board into an IP-KVM: the screen, keyboard and mouse of another computer in your browser, from the BIOS up. Add an HDMI capture board, flash it from the browser, and it runs with no Linux, no app and no cloud. What it does → Try the demo →

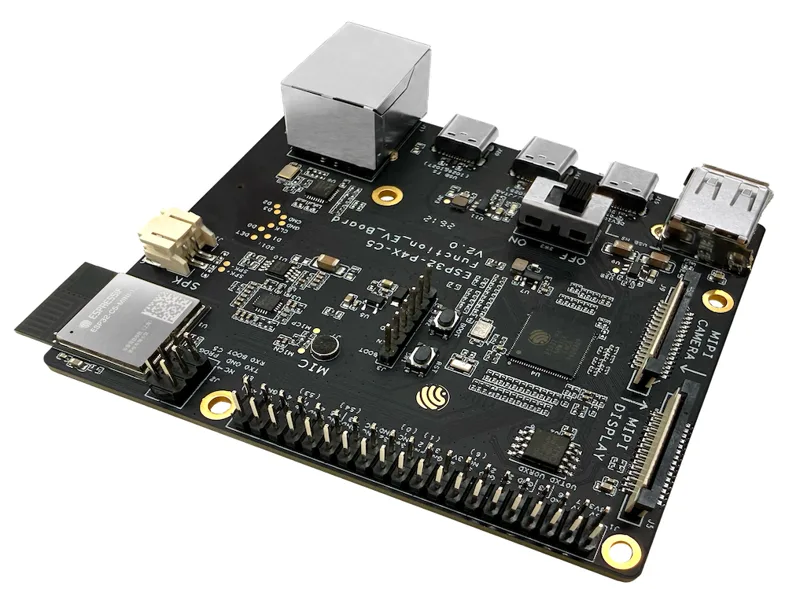

Espressif ESP32-P4X-C5-Function-EV-Board
Not tested on hardware

Espressif ESP32-P4X-C5-Function-EV-Board

The Function EV with a dual-band ESP32-C5, so it can join a 5 GHz network. Ethernet, microSD, rev 3.x.

StatusBuilt from the schematic, not run on one yet
FamilyAll Espressif parts
ChipESP32-P4, rev 3.x
Memory32 MB PSRAM, 16 MB flash
Size88 x 74 mm
Network100M Ethernet, dual-band Wi-Fi 6 (ESP32-C5)
To the targetUSB-C, the HS OTG one
Capture connector15-pin 1.0 mm camera connector
microSDyes

Install from the browser Espressif user guide Compare

Have one? Nobody has run ESP-KVM on this yet. If you try it, tell me how it went, whether it worked or not: one report moves it to tested or gets the bug fixed. Post your result →

The Function EV with an ESP32-C5-MINI-1 where the C6 was. Espressif's own esp-hosted preset for this board puts the C5 on the same pins the C6 used, so the image is the Function EV's with the co-processor swapped.

Wiring

  • The HS OTG goes to a Type-C and a Type-A, and they cannot be used at once. The target goes on the Type-C.
  • Flashing and the log go through the chip's own USB Serial/JTAG Type-C.

Built from the user guide, not yet run on one.

Capture boards

Geekworm C790 TC358743 Waveshare HDMI to CSI Adapter TC358743Waveshare
